Description

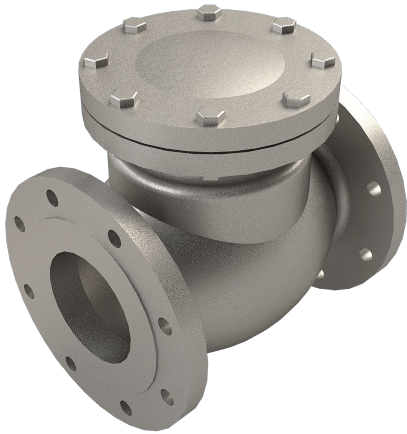

RK swing check valves are engineered to ensure unidirectional flow, automatically closing to prevent reverse flow and safeguard your fire protection system

Swing check valves are normally recommended for water and wastewater systems applications because of the simple construction, low pressure drop across the valve, and field serviceability

Swing check valves are available in either metal-to-metal seat or resilient seating. Resilient seated swing check valves are usually recommended for wastewater or services where dirt or other particles may be present in the fluid and positive shutoff is required.

---

Features

• Body to Cover Joint designed to apply a uniform load to the gasket to assure a leak proof seal.
• Disc to Hanger connection allows the disc a controlled movement independent of the hanger to assure proper disc alignment with the seat at closure.
• The connection is secured by a welded disc nut to prevent disassembly due to vibration and closure impact
• Stellited Seat Ring provides increased resistance to wear abrasion and erosion of the sealing surface.

---

Material Construction:

Part Name

WCB

C5

C12

LCB

LCC

CF8

CF8M

Body & Cover	A 216 WCB	A217C5	A217C12	A 352 LCB	A 352 LCC	A351CF8	A351 CF8M
Disc	A 216 WCB	A217C5	A217C12	A 352 LCB	A 352 LCC	A351CF8	A351 CF8M
Seat Ring	A105	A182F5	A182F9	A350LF2	A350LF2	Integral	Integral
Hinge Pin	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table
Back Seat Bushing	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table
Stud & Nuts	ASTMA193 Gr.B7/ASTM A194 Gr. 2H	ASTMA193 Gr.B7/ASTM A194 Gr. 2H	ASTMA193 Gr.B7/ASTM A194 Gr. 2H	ASTMA193 Gr.B7/ASTM A194 Gr. 2H	ASTMA193 Gr.B7/ASTM A194 Gr. 2H	ASTMA193 Gr.B7/ASTM A194 Gr. 2H	A193B16,A194Gr.4/7
Gasket	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler	PTFE
