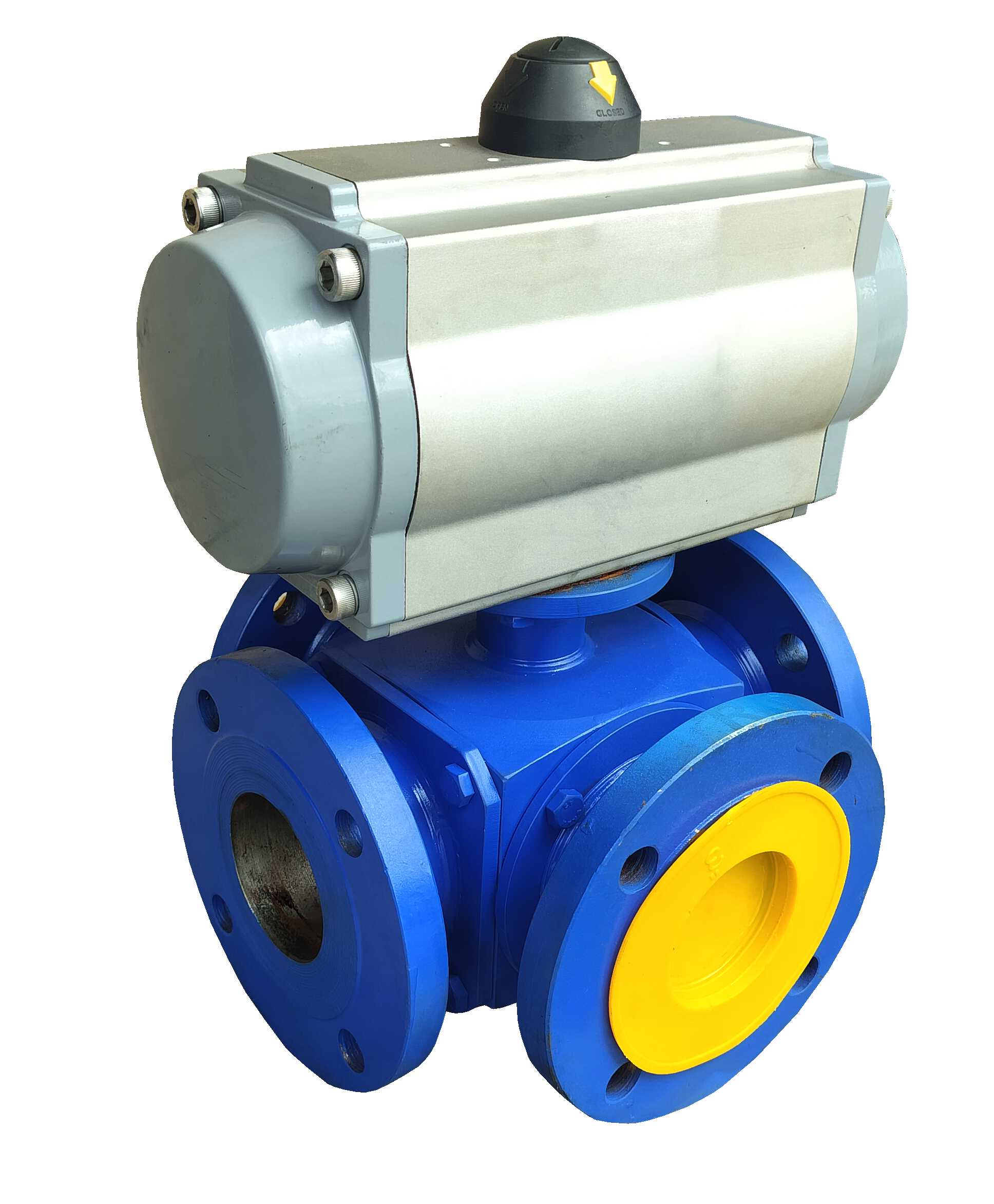

4 Way Ball Valve
4 Way Ball valve Technical Detail
Size Range: 2” – 12” Custom sizes available upon request
Pressure Rating: PN 10 to PN 100, ANSI Class 150 to Class 900
Design And Manufacturing: API 6D/ ASME B16.34 / BS 5351 / ISO 17292
Valve Face To Face Dimension: ASME B 16.10 / EN 558
Ends: Flanged End / Socket End / Screwed End
Flange Standard Conformity: ASME B16.5 / ASME B16.25 / ASME B16.11
Inspection & Testing: API 598 / BS EN 12266-1 / BS 6755
Top Mounting Flange: ISO 5211
Seat Leakage: Class VI for PTFE, EPDM, Viton Soft Seats
Description
RK 3-way and 4-way ball valves reliably split or shut off the flow of your media. Valve available with threaded connections or Flanged connections. The countless hole variations available for the ball element mean endless possibilities when it comes to splitting your medium. We can find the right valves for almost all your usage scenarios and media.

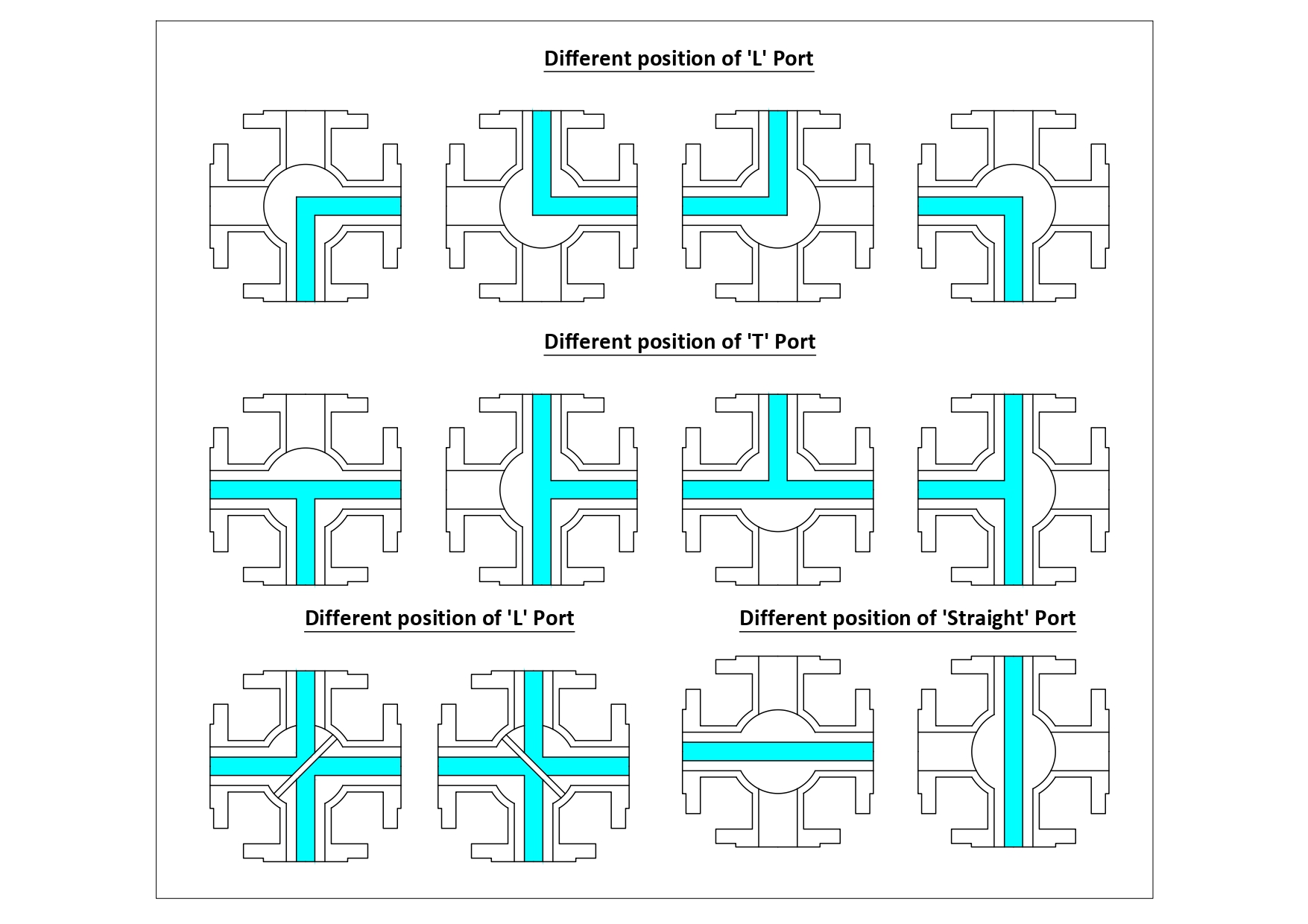

These valves are available in L port, T port, & LL port design. They are very special for flow control the line fluid into L shape (90 degrees), LL shape for bye diverting the flow lines of media, T for additional line flow controls at 90 degrees.
Features
- Flow diversion or Mixing can be more precise.
- High Performance Ball Valve
- Positive Shut off
- Compact Design gives space saving
- Low Pressure Drop
- Blow-out proof stem
Material Construction:
| PARTS NAME | WCB | CI | CF8 | CF8M |
| BODY & BODY CONNECTOR | A216-WCB | IS 210 FG 220 | A351-CF8 | A351-CF8M |
| BALL | A216-WCB | A351-CF8 | A351-CF8 | A351-CF8M |
| STEM | A276-410 | A276-410 | A276-304 | A276-316 |
| SEAT RINGS | PTFE/R-PTFE(25%GLASS FILLED) | PTFE/R-PTFE(25%GLASS FILLED) | PTFE/R-PTFE(25%GLASS FILLED) | PTFE/R-PTFE(25%GLASS FILLED) |
| PACKING | PTFE/R-PTFE(25%GLASS FILLED) | PTFE/R-PTFE(25%GLASS FILLED) | PTFE/R-PTFE(25%GLASS FILLED) | PTFE/R-PTFE(25%GLASS FILLED) |
