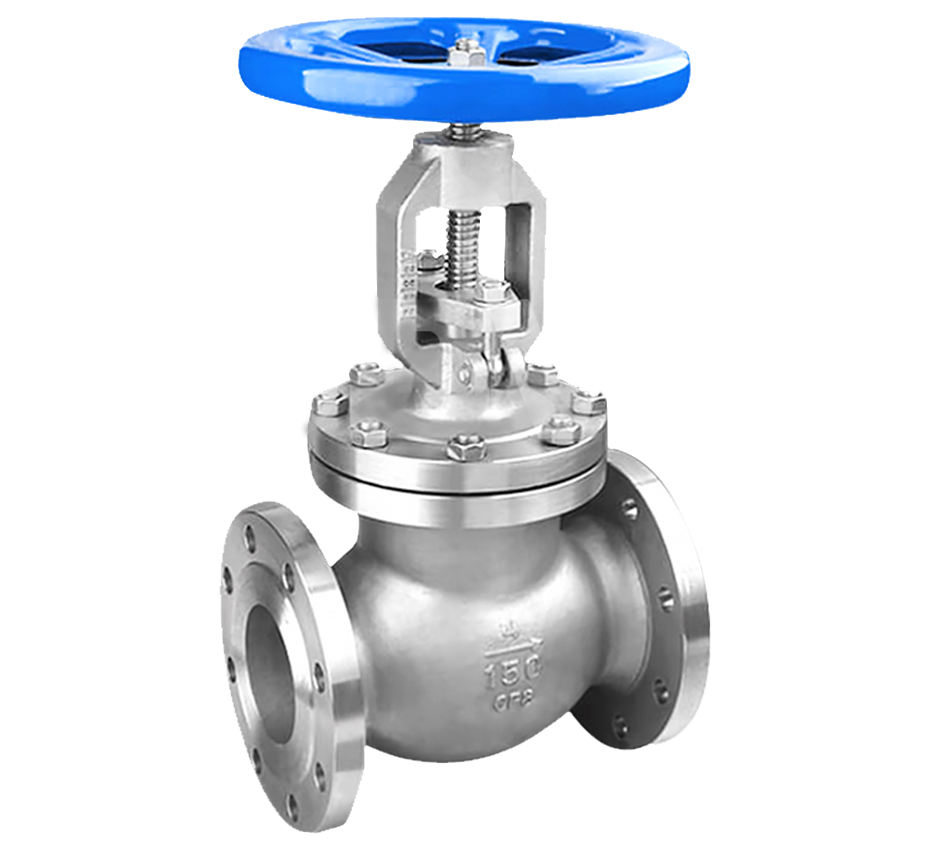

Globe Valve

---

---

Description:

Series 5000 Angle Globe Valve are well suited for high viscous fluids, all types of slurries, sugar cane juice, masecute & powder applications. Valves are available for on-off & control duty applications.

Wide body cavity provides easy flow & higher capacity.

Trim options available to satisfy a variety of applications.

Trims are available for pressure balancing effect providing economical choice for high pressure applications, reducing the actuator size and operating air pressure.

Valves are available in various material combinations including conformance to NACE MR-01-75.

Option of Hardened trim material provides excellent wear resistance & longer trim life.

---

Features:

• It is most suitable for Severe, Abrasive, Erosive, Slurry applications
• Handlesflashing the best

---

Material Construction:

Part Name

WCB

C5

C12

LCB

LCC

CF8

CF8M

Body & Bonnet	A 216 WCB	A217C5	A217C12	A 352 LCB	A 352 LCC	A351CF8	A351 CF8M
Disc	A 216 WCB	A217C5	A217C12	A 352 LCB	A 352 LCC	A351CF8	A351 CF8M
Seat Ring	A105	A182F5	A182F9	A350LF2	A350LF2	Integral	Integral
Stem	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table
BackSeat Bushing	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table	See trim Material Table
Gland Flange	A 216 WCB	A217C5	A217C12	A 352 LCB	A 352 LCC	A351CF8	A351 CF8M
Stud & Nuts	ASTMA193 Gr.B7/ASTM A194 Gr. 2H	ASTMA193 Gr.B7/ASTM A194 Gr. 2H	ASTMA193 Gr.B7/ASTM A194 Gr. 2H	ASTMA193 Gr.B7/ASTM A194 Gr. 2H	ASTMA193 Gr.B7/ASTM A194 Gr. 2H	ASTMA193 Gr.B7/ASTM A194 Gr. 2H	A193B16,A194Gr.4/7
Gland Packing & Nuts	Graphite Ring, Metallic Wire Reinforced	Graphite Ring, Metallic Wire Reinforced	Graphite Ring, Metallic Wire Reinforced	Graphite Ring, Metallic Wire Reinforced	Graphite Ring, Metallic Wire Reinforced	Graphite Ring, Metallic Wire Reinforced	PTFE
Gasket	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler	S.S.304/S.S.316 Spiral Wound Gasket with Grafoil Filler	PTFE
Hand Wheel	Ductile or Malleable Iron	Ductile or Malleable Iron	Ductile or Malleable Iron	Ductile or Malleable Iron	Ductile or Malleable Iron	Ductile or Malleable Iron	Ductile or Malleable Iron
