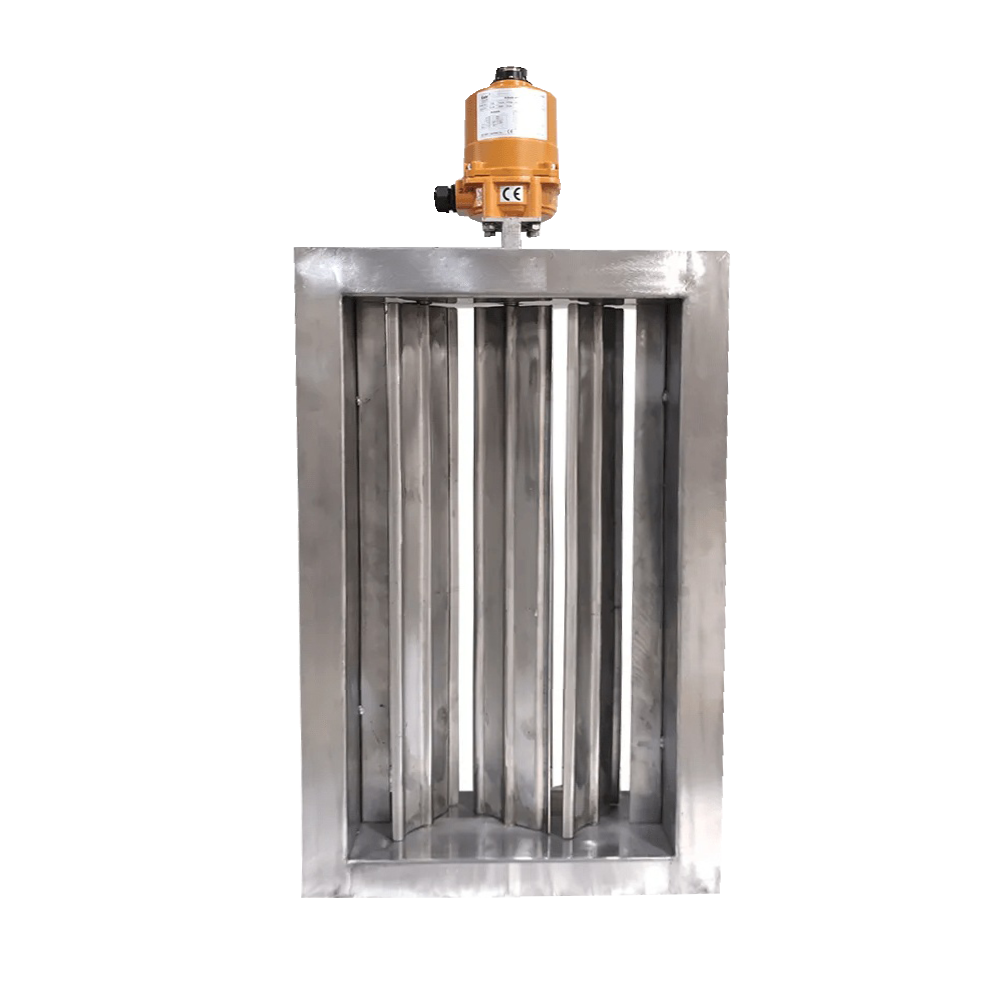

Rectangular/Square Multi Louver Damper

Fullwidth

Boxed

Static

Sticky

Temperature:

Typically up to 800°C on request

Design And Manufacturing:

Manufacturer / As per customer requirement

Valve Face To Face Dimension: Manufacturer / As per customer requirement

Design Pressure:

Typically 50Kpa (0.5 barG) however we can design for higher on request

Circular or rectangular isolating damper with shut-off system by means of a sliding gate.

Available with pneumatic, electric, hydraulic or manual actuator.

Depending on the sealing system, varying levels of tightness can be obtained (95% -100 %).

Suitable for low pressure combustion gases at high temperatures (600ºC).

Applications in cogeneration plants, waste heat recovery systems.

Description

Material

Body	Carbon Steel / Stainless Steel
Disc	Carbon Steel / Stainless Steel
Shaft	EN 8 / SS 304 / SS 410
Operation	Lever / Gear / PNEUMATIC / ELECTRICAL Actuator
Fastener	CS / SS 202 / SS 304
Bearing	Seal and flinger on both sides ball bearing unit with set screw locking, cast iron housing
Packing	Braided PTFE / Braided Graphite
