KEB Bi-Directional
KEB Technical Detail
Design And Manufacturing:
Manufacturer
Size Range :
2” to 24”
Pressure Rating:
PN 10
Valve Face To Face Dimension:
MSS SP-81
Flange Standard Conformity:
ASME B16.5 150 / PN 10 / PN 16
Inspection & Testing:
MSS SP-135
Seat Leakage:
Zero leakage
Description

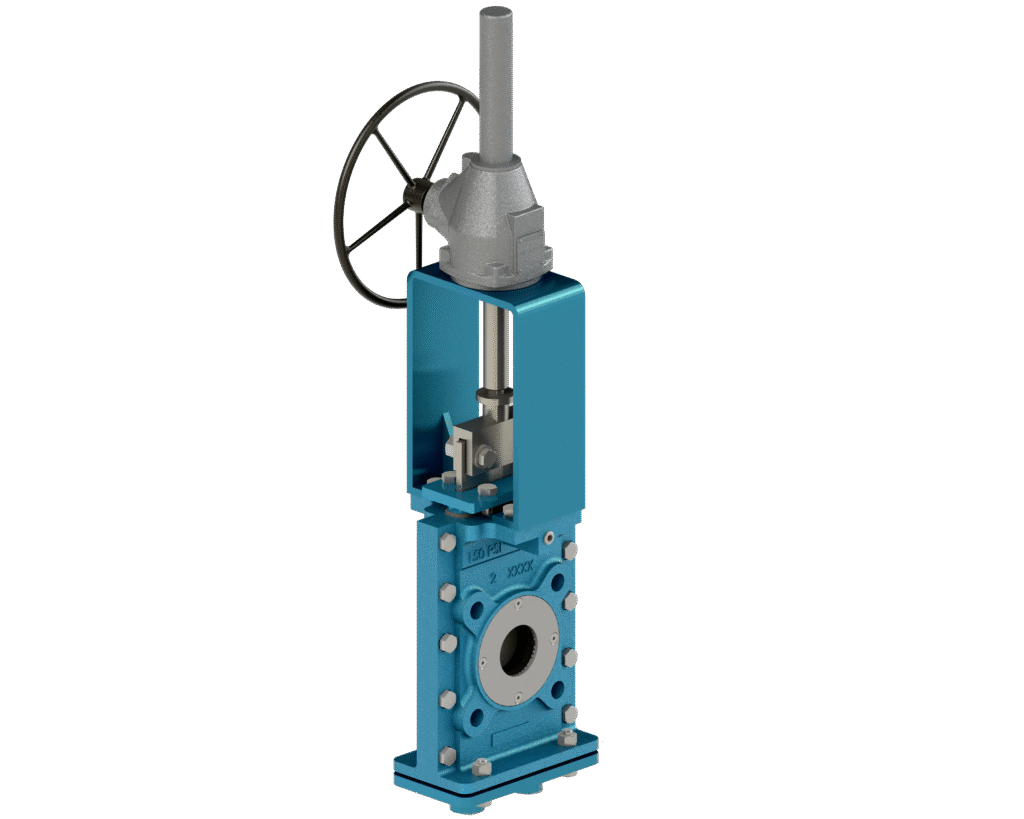

KEB Model is a bidirectional heavy duty slurry valve, designed for demanding slurry applications. Twin elastomer sleeves and gate design facilitate self-cleaning and prevent media build up. The durable ductile iron body is offered in a two piece bolted flange style. When fully open, the valve is full bore—offering no resistance to line media.
Features
- Simplified two-piece body design allows for easier rebuilds
- Dual embedded steel reinforced elastomer sleeve providing dynamically self-aligned sealing for zero leakage.
- Meets a wide range of abrasion, corrosion, temperature, and pressure requirements.
- Can handle dry and wet media with wide particle size.
- The sleeves are easily replaceable without disassembling the valve.
- Self-lubricating and lubricant is injected without dismantling the valve from the pipe line.
- Splash guard provided at bottom of the valve to clean the slurry periodically.
- Cavity free flow path offering minimum pressure drop
Material Construction:
| Description | Material |
| Body | CF8 / CF8M / WCB / DI |
| Sleeve | EPDM / Viton / Nitrile |
| Gate | SS 304 / SS 316 / 17.4PH / SS 2507 |
| Retainer Ring | SS 304 / SS 316 / 17.4PH / SS 2507 |
| Packing | EPDM / Viton / Nitrile |
| O-Ring | EPDM / Viton / Nitrile |
| Stem | SS 304 / SS 410 |
| Yoke | SS 304 / Carbon Steel |
| Handwheel | DI |
