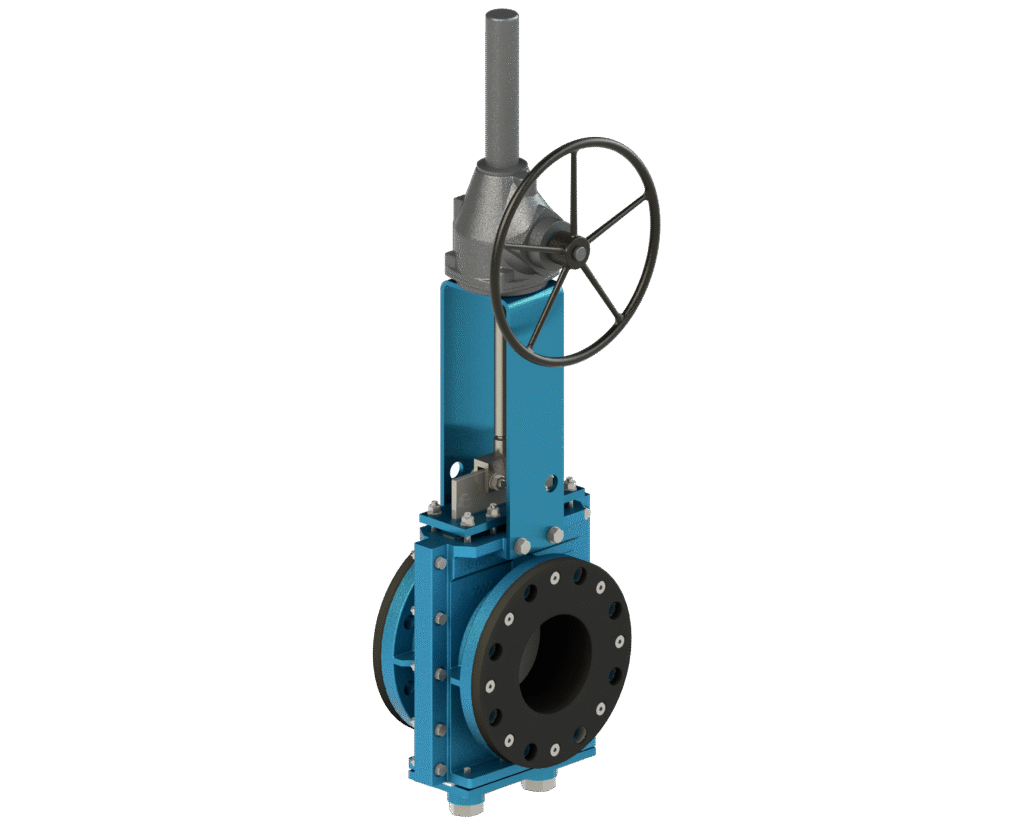

KMB & KHB Bi-Directional high performance Medium & Heavy Duty
KMB & KHB Technical Detail
Design And Manufacturing: Manufacturer
Size Range : 2” to 24”
Pressure Rating: KMB – 300 PSI (20 Bar)
KHB – 740 PSI (50 Bar)
Seat Leakage: Zero leakage
Valve Face To Face Dimension: Manufacturer
Flange Standard Conformity: ASME B16.5 150 / PN 10 / PN 16
Inspection & Testing: MSS SP-135
Description
KMB & KHB Model is a bidirectional heavy duty slurry valve, designed for demanding slurry applications. Twin elastomer sleeves and gate design facilitate self-cleaning and prevent media build up. The durable ductile iron body is offered in a two piece bolted flange style. When fully open, the valve is full bore—offering no resistance to line media.
Features
Simplified two-piece body design allows for easier rebuilds
Dual embedded steel reinforced elastomer sleeve providing dynamically self-aligned sealing for zero leakage.
Meets a wide range of abrasion, corrosion, temperature, and pressure requirements.
Can handle dry and wet media with wide particle size.
The sleeves are easily replaceable without disassembling the valve.
Self-lubricating and lubricant is injected without dismantling the valve from the pipe line.
Splash guard provided at bottom of the valve to clean the slurry periodically.
Cavity free flow path offering minimum pressure drop
Material Construction:
| Description | Material |
| Body | CF8 / CF8M / WCB / DI |
| Sleeve | EPDM / Viton / Nitrile |
| Gate | SS 304 / SS 316 / 17.4PH / SS 2507 |
| Packing | EPDM / Viton / Nitrile |
| O-Ring | EPDM / Viton / Nitrile / AFLAS |
| Stem | SS 304 / SS 410 |
| Yoke | SS 304 / Carbon Steel |
| Handwheel | DI |
