Basket Strainer
BASKET STRAINER TECHNICAL DETAILS
Design And Manufacturing: Manufacturer
Size Range : 2” to 48”
Pressure Rating: ASME Class 150 / PN 10
Valve Face To Face Dimension: As per Customer requirement
End Conformity: ASME B16.5 / ASME 16.47
Shell Leakage: Hydrostatically pressure tested at 1.5 times the valve’s 100 °F (38 C) design pressure rating,
Description

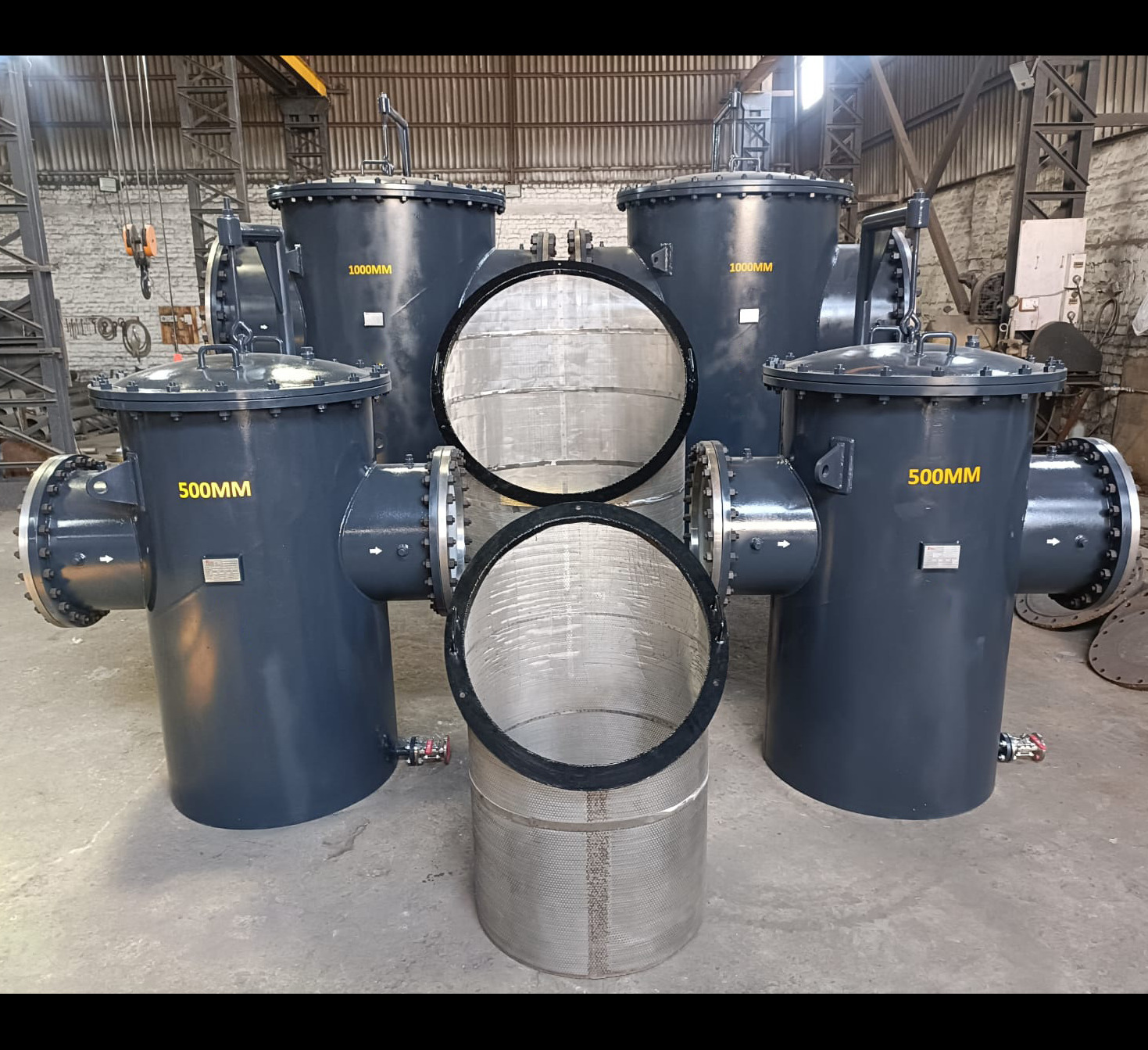

Basket strainers are the type of strainers bigger than the Y Type strainers. Simplex basket strainers can be of casted and fabricated depending upon various factors. The shape of simplex basket strainers is like a basket which has the capacity to store large amounts of debris. Also, the bigger size provides a proper platform for an effective filtration area. Although the weight of simplex basket strainers is quite heavy, its enormous size renders excellent capacity for holding dirt.
A casted simplex basket strainer is a strainer made up of robust cast… It has a threaded drain and the flow of fluids is from inside to outside. Providing expertise in strainers, we offer various options in the physical and technical features which can be selected as per the preference of our clients.
Available with multi-mesh and wedge wire
Features
- Integrally cast housings
- Flow is from inside to outside
- Threaded drain
- Large screen area ensures efficient filtration with low pressure drop
Material Construction:
| Description | Material |
| Body | SS304 / SS316 / Carbon Steel / Cast Iron |
| Cover | SS304 / SS316 / Carbon Steel / Cast Iron |
| Basket | SS304 / SS316 (Woven Mesh or Perforated Sheet) |
| Fastener | High Tensile Steel / S.S 202/S.S.304 |
