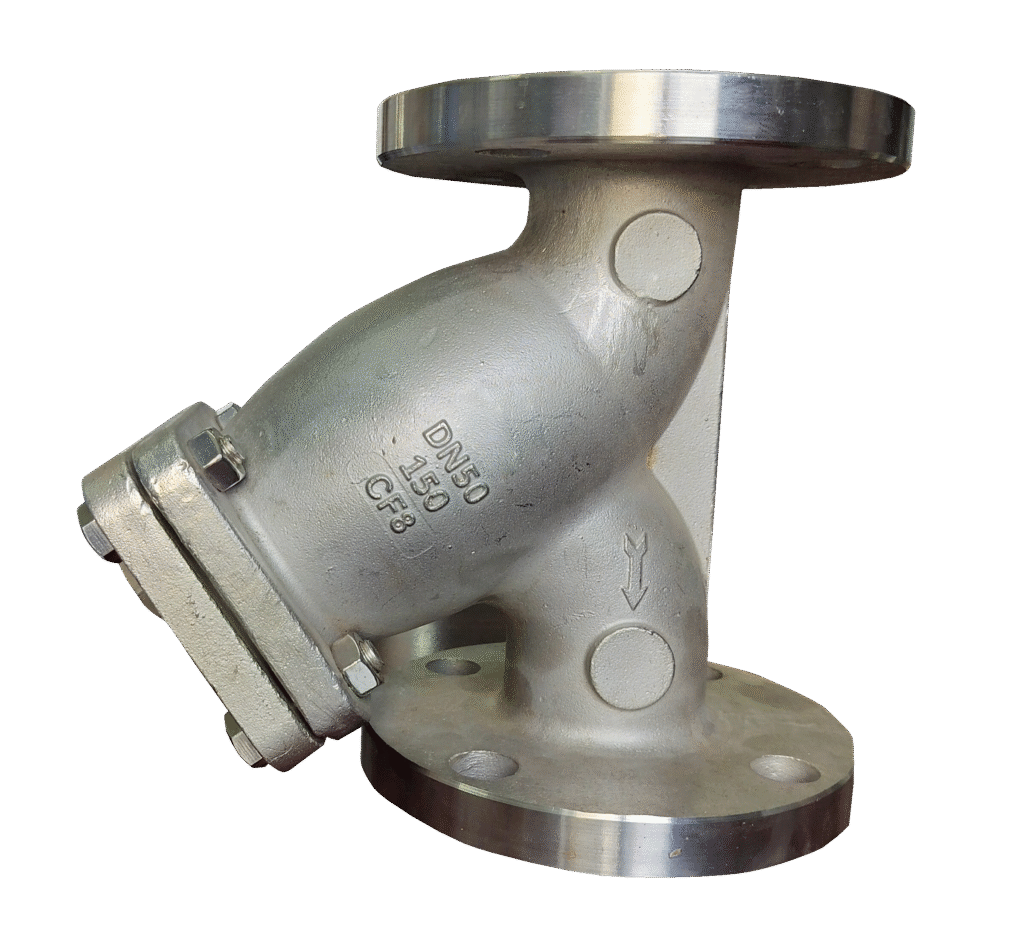

Y-Strainer
Y-STRAINER TECHNICAL DETAILS
Design And Manufacturing: ASME B16.34
Size Range : 2” to 24”
Pressure Rating: ASME Class 150 / 300
Valve Face To Face Dimension: ASME B16.10
End Conformity: ASME B16.5 / ASME 16.11 / ASTM B 1.20.1
Inspection & Testing: ASME B16.34
Shell Leakage: Hydrostatically pressure tested at 1.5 times the valve’s 100 °F (38 C) design pressure rating
Description
Most cost-effective, the Y strainer uses perforated wire mesh or wedge wire to trap unwanted solids from a process stream. Y strainer can be mounted vertically or horizontally in a piping system strainer is a low-cost solution to large nominal bore straining requirements.
Y strainers are commonly used in pipelines to prevent damage to Gauges, pumps, control valves, Flowmeters, and other process equipment.
The ways in which y strainers can be customized are seemingly endless when compared with other types of strainers. However, the design of a y strainer must be appropriate for the application for this system to be successful. In order to get the right results, always be sure to know the application you are working with before buying a y strainer
Available with multi-mesh and wedge wire
Features
- Rugged, all-stainless steel construction
- Reverse flow coefficient less than 0.1 % of forward flow coefficient
- Energy efficient due to low cracking pressure
Material Construction:
| Description | Material |
| Body | SS304 / SS316 / Carbon Steel / Cast Iron |
| Cover | SS304 / SS316 / Carbon Steel / Cast Iron |
| Basket | SS304 / SS316 (Woven Mesh or Perforated Sheet) |
| Fastener | High Tensile Steel / S.S 202/S.S.304 |
