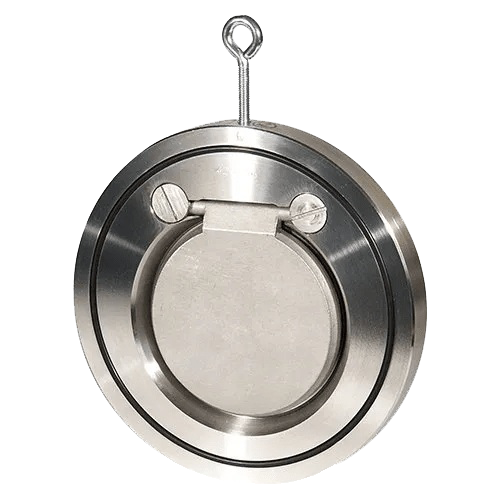

- Single Plate Wafer Check Valve
Technical Detail
Seat Leakage:
Class IV for Flexible Metal Seats, Class VI for PTFE, EPDM, Viton Soft Seats
Design And Manufacturing:
API-6D, ASME B16.34
Size Range :
1.5” to 24”
Pressure Rating:
ASME Class 150 / 300 / PN 10 / PN 16
Valve Face To Face Dimension:
API-6D / ASME B16.10
Flange Standard Conformity:
B16.5 150# RF
Inspection & Testing:
API 598 / BS EN 12266-1
Description
RK Wafer Check Valves are ideally suitable for horizontal application in oil, gas, water, refining, power and chemical applications where the prevention of flow reversal is mandatory.
Wafer check valves use a swinging disc to allow or block flow. Their design allows them to be fitted in extremely tight spaces – where the flanged check valve can not be used. The wafer check valves have moulded bodies around the area where the disc opens up.
The valve is ideal for pump discharge duties. The eccentric mounted hinge pin in combination with the disc seat guarantees a positive shut off of the returning media.
Features
- Very simple in construction, compact, light-weight, sturdy & rugged.
- Can operate effectively in both vertical and horizontal pipe lines
- Soft seated valves come in two variants – O ring seated and PTFE / RPTFE seated.
- Wafer type end connections as standard – other types can be provided on request.
- Threaded lifting hook for easy handling and alignment
Material Construction:
| Description | Material |
| Body, Cover | C.I. / WCB / CF8 / CF8M |
| Disc | C.I. / WCB / CF8 / CF8M |
| Seat | Nitrile / EPDM / Silicon / Viton / PTFE /GFT |
| Spring | SS |
